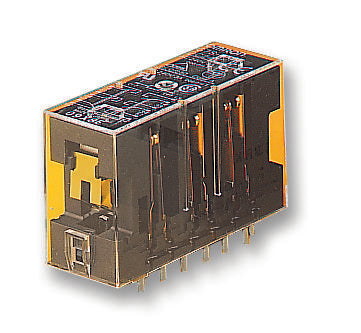

SF4D-DC24V Relay, Safety, 4PST-NO, NC, 250VAC, 6a Panasonic

PANASONICSKU:SF4D-DC24V Bestelcode:4388409

Prijs:
Actie prijs€69,20

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (260 units)

Documenten en downloads

Omschrijving

PANASONIC - SF4D-DC24V - Safety Relay, 24 VDC, 4PST-NO, 4PST-NC, SF4D, Through Hole, 6 A, Solder

  • Coil Voltage: 24VDC
  • Contact Configuration: 4PST-NO, 4PST-NC
  • Product Range: SF4D Series
  • Relay Mounting: Through Hole
  • Contact Current: 6A
  • Relay Terminals: Solder
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Contact Material: Silver Tin Oxide
  • IP Rating: -
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Operating Lower Percent Limit: 75%
  • Coil Operating Upper Percent Limit: 120%
  • Coil Resistance: 1.152kohm
  • Coil Type: DC Monostable
  • Coil Voltage VDC Nom: 24V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 6A
  • Contact Voltage AC Max: 440V
  • Contact Voltage DC Max: 24V
  • Current Rating: 6A
  • DC Coil Power: 500mW
  • External Depth: 16.5mm
  • External Height: 53.3mm
  • External Length / Height: 53.3mm
  • External Width: 25mm
  • Nom Operating Power: 500mW
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -40°C
  • Power Consumption: 500mW
  • Relay Type: General Purpose
  • Supply Voltage: 24V
  • Switch Current Max: 20A
  • Switching Current Max: 20A
