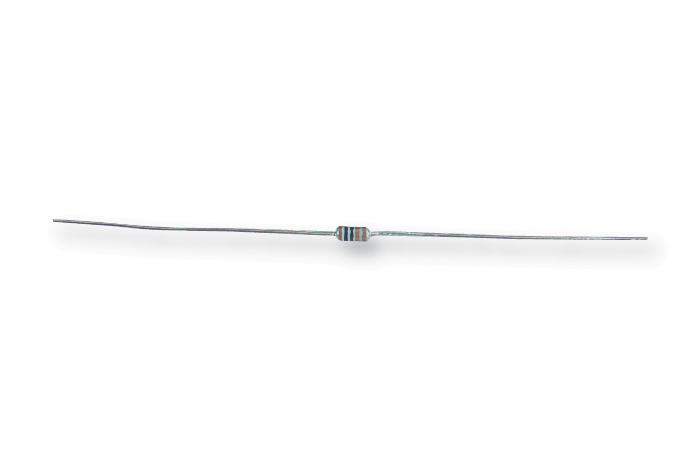

SFR2500004704JA500 Res, 4M7, 5%, 400mW, Axial, Metal Film Vishay

VISHAYSKU:SFR2500004704JA500 Bestelcode:9476911

Prijs:
Actie prijs€0,10

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4955 units)

Documenten en downloads

Omschrijving

VISHAY - SFR2500004704JA500 - Through Hole Resistor, 4.7 Mohm, SFR125, 400 mW, ± 5%, Axial Leaded, 250 V

  • Resistance: 4.7Mohm
  • Product Range: SFR125 Series
  • Power Rating: 400mW
  • Resistance Tolerance: ± 5%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 250V
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 250ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 2.5mm
  • External Length / Height: 7mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.6mm
  • Lead Length: 26mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 250ppm/K
  • Temperature Coeff. -: 250ppm/K
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 250V
