Omschrijving

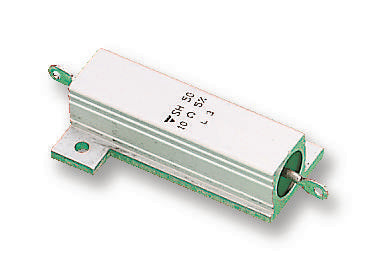

VISHAY - SH50R1000JS03 - Resistor, 0.1 ohm, SH, 50 W, ± 5%, Solder Lug, 1.285 kV
- Resistance: 0.1ohm
- Product Range: SH Series
- Power Rating: 50W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: 1.285kV
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 50ppm/°C
- External Depth: 15mm
- External Length / Height: 50mm
- External Width: 15.5mm
- Fixing Centres LxW: 39.7x21.4
- Full Power Rating Temperature: 25°C
- Insulation Resistance: 30000mohm
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +200°C
- Resistor Mounting: Panel
- Temperature Coeff. +: 50ppm/°C
- Temperature Coeff. -: 50ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating VAC: 1285V
