Omschrijving

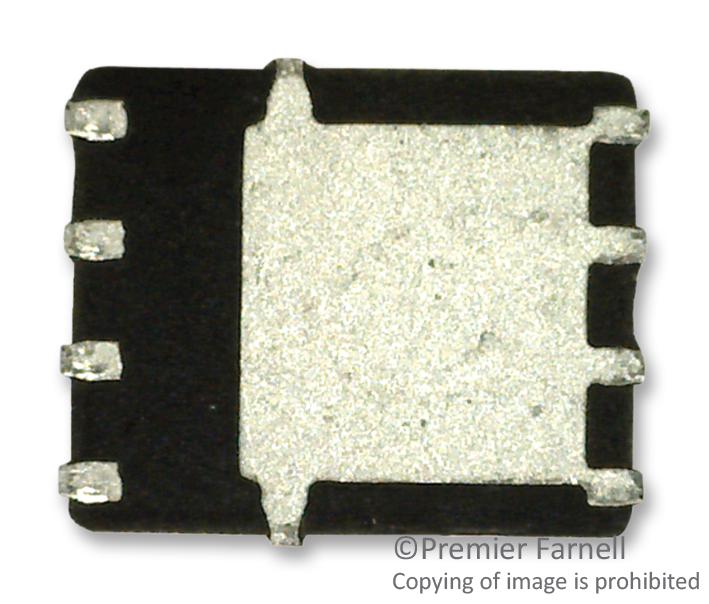

VISHAY - SIR870ADP-T1-GE3 - Power MOSFET, N Channel, 100 V, 60 A, 0.0055 ohm, PowerPAK SO, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 60A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.0055ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.5V
- Power Dissipation Pd: 104W
- Transistor Case Style: PowerPAK SO
- No. of Pins: 8Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
