Documenten en downloads
Omschrijving
NKK SWITCHES - SK12AAW01 - Keylock Switch, On-None-On, SPDT, SK, 2 Position, Solder, 3 A
- Switch Operation: On-None-On
- Contact Configuration: SPDT
- Product Range: SK Series
- No. of Switch Positions: 2 Position
- Switch Terminals: Solder
- Contact Current Max: 3A
- Contact Voltage AC Nom: 125V
- Contact Voltage DC Nom: -
- Angle of Throw: 90°
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Flat
- Actuator Type: Flat
- Approval Bodies: CSA, UL
- Bush Diameter: 12mm
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current AC Max: 1A
- Contact Current Rating: 3A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- External Length / Height: 43.2mm
- External Width: 14mm
- Full Angle: 90°
- Indexing Angle: 90°
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 30000
- No. of Positions: 2Ways
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Shaft Diameter: 12mm
- Termination Method: Solder / Push-On
Verwachte verzendkosten
Bekijk ook eens

NKK SWITCHES
SS12SDP2 Slide Switch, SPDT, On-None-On NKK Switches
Actie prijs€9,47
Op voorraad, 1135 producten

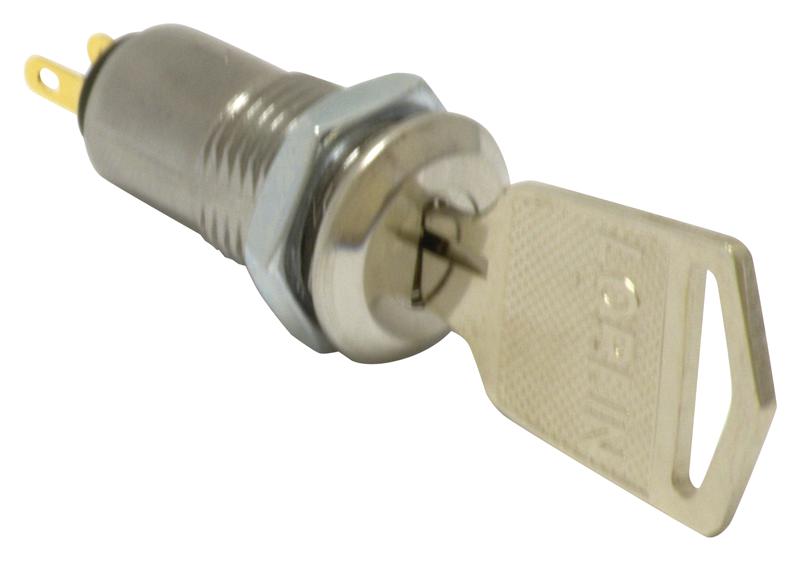

LORLIN
SKL-12-A-S-2 Key Lock Switch, SPST, 0.5A, 24V, Solder LORLIN
Actie prijs€14,01
Op voorraad, 88 producten
C&K COMPONENTS
1101M2S3AQE2 Slide Switch, SPDT, R/A, On-On C&K Components
Actie prijs€11,07
Op voorraad, 387 producten
LORLIN
WRL-5-D-S-2 KEYSWITCH, SPDT, 2 Pos, IP67, STD LORLIN
Actie prijs€30,46
Op voorraad, 310 producten
C&K COMPONENTS
T101STDCBE Switch, Pcb, SPDT C&K Components
Actie prijs€17,54
Op voorraad, 735 producten

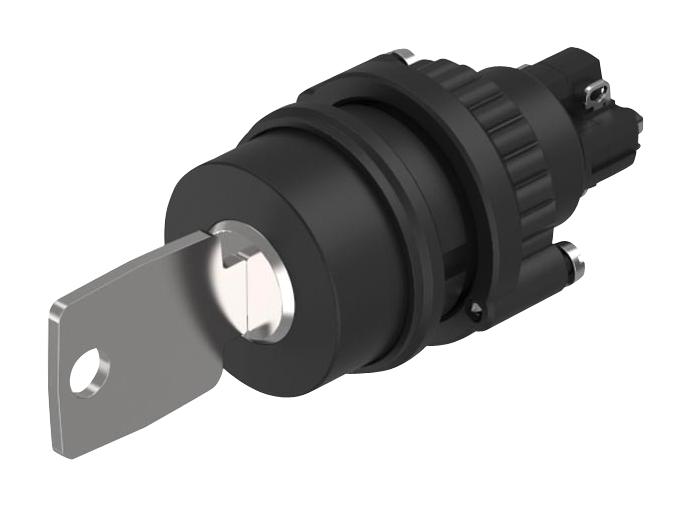

EAO
