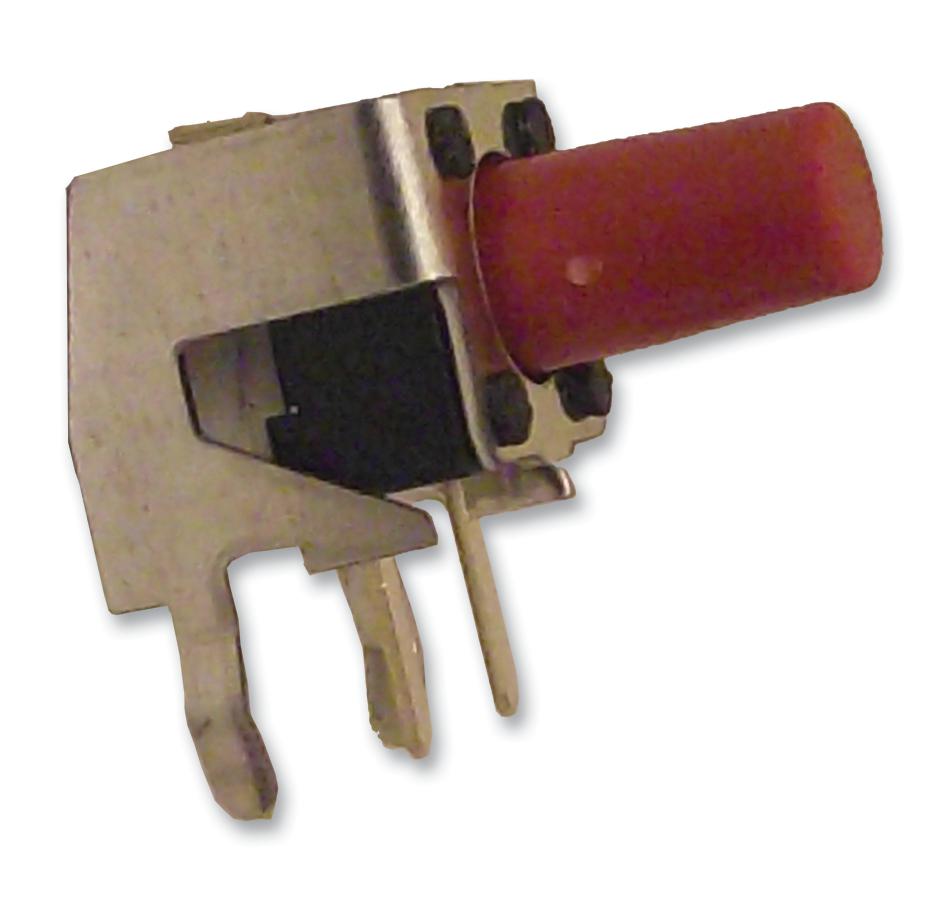

SKHHLPA010 Switch, Tactile, Pcb, R/A, 2.55N Alps Alpine

ALPS ALPINESKU:SKHHLPA010 Bestelcode:1656428

Prijs:
Actie prijs€0,66

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (810 units)

Documenten en downloads

Omschrijving

ALPS ALPINE - SKHHLPA010 - Tactile Switch, SKHH, Side Actuated, Through Hole, Round Button, 260 gf, 50mA at 12VDC

  • Product Range: SKHH Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Round Button
  • Actuating Force: 260gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (20-Jun-2016)
  • Actuation Type: Side
  • Actuator / Cap Colour: Red
  • Colour: Red
  • Contact Current @ Contact Voltage DC Max: 50mA
  • Contact Current @ Contact Voltage DC Min: 10µA
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 12VDC
  • Contact Voltage DC Min: 1VDC
  • Contact Voltage DC Nom: 12V
  • External Depth: 3.5mm
  • External Length / Height: 6mm
  • External Width: 6mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • No. of Electrical Operations: 200000
  • Operating Force: 2.55N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -30°C
  • Pre-travel: 0.25mm
  • Proof Voltage: 250VAC
  • Shaft Length: 3.85mm
  • Switch Operation: Off-On

Verwachte verzendkosten

Bekijk ook eens

SKHHLMA010 SWITCH, TACTILE, PCB, R/A, 0.98N ALPS ALPINE
ALPS ALPINE SKHHLMA010 Switch, Tactile, Pcb, R/A, 0.98N Alps Alpine
Actie prijs€0,58
Op voorraad, 5659 producten
SKHHLSA010 SWITCH, TACTILE, 6X6MM, HORIZ, RED ALPS ALPINE
ALPS ALPINE SKHHLSA010 Switch, Tactile, 6X6MM, HORIZ, Red Alps Alpine
Actie prijs€0,67
Op voorraad, 841 producten
SKHHLVA010 SWITCH, TACTILE, 6X6MM, HORIZ, GREY ALPS ALPINE
ALPS ALPINE SKHHLVA010 Switch, Tactile, 6X6MM, HORIZ, Grey Alps Alpine
Actie prijs€0,78
Op voorraad, 1725 producten
SKHHAQA010 SWITCH, TACTILE, 6X6MM, VERT, RED ALPS ALPINE
ALPS ALPINE SKHHAQA010 Switch, Tactile, 6X6MM, Vert, Red Alps Alpine
Actie prijs€0,58
Op voorraad, 801 producten
SKHHALA010 SWITCH, TACTILE, 6X6MM, VERT, GREY ALPS ALPINE
ALPS ALPINE SKHHALA010 Switch, Tactile, 6X6MM, Vert, Grey Alps Alpine
Actie prijs€0,55
Op voorraad, 1352 producten
SKHLLFA010 TACTILE SWITCH, 0.05A, 12VDC, TH ALPS ALPINE
ALPS ALPINE SKHLLFA010 Tactile Switch, 0.05A, 12VDC, Th Alps Alpine
Actie prijs€1,76
Op voorraad, 9915 producten
SKHCBFA010 TACTILE SWITCH, 0.05A, 12VDC, TH ALPS ALPINE
ALPS ALPINE SKHCBFA010 Tactile Switch, 0.05A, 12VDC, Th Alps Alpine
Actie prijs€1,73
Op voorraad, 665 producten
SKHCBKA010 TACTILE SWITCH, 0.05A, 12VDC, TH ALPS ALPINE
ALPS ALPINE SKHCBKA010 Tactile Switch, 0.05A, 12VDC, Th Alps Alpine
Actie prijs€0,76
Op voorraad, 620 producten

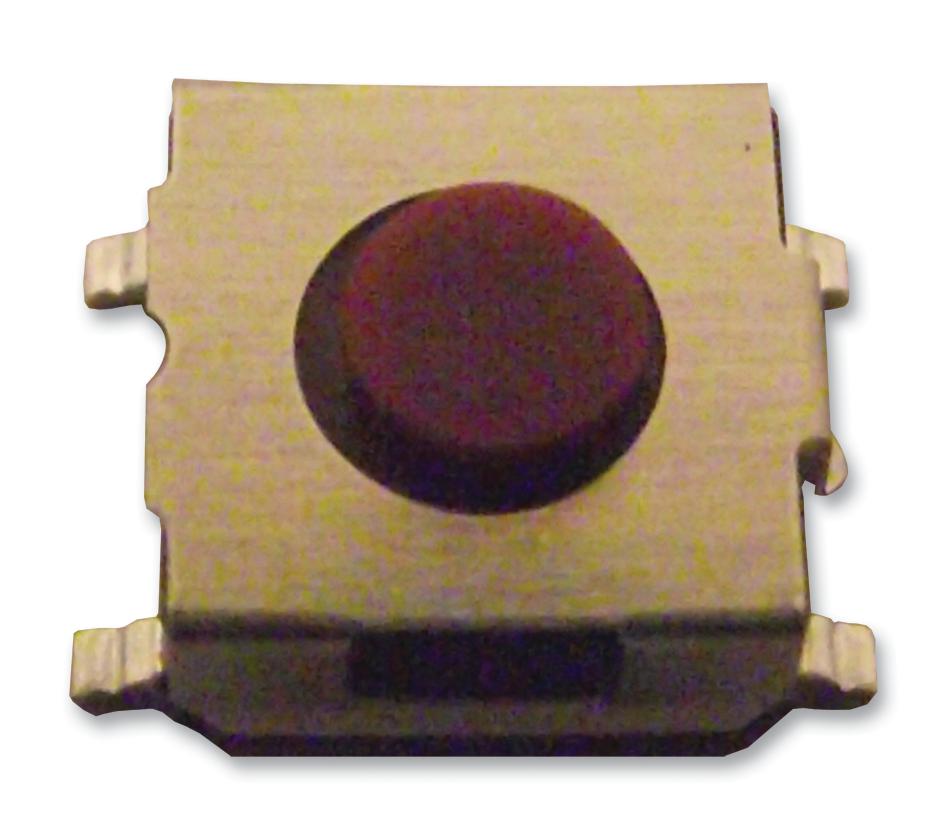

SKHMQME010 SWITCH, TACTILE, SMD, 2.35N, RED ALPS ALPINE
