Omschrijving

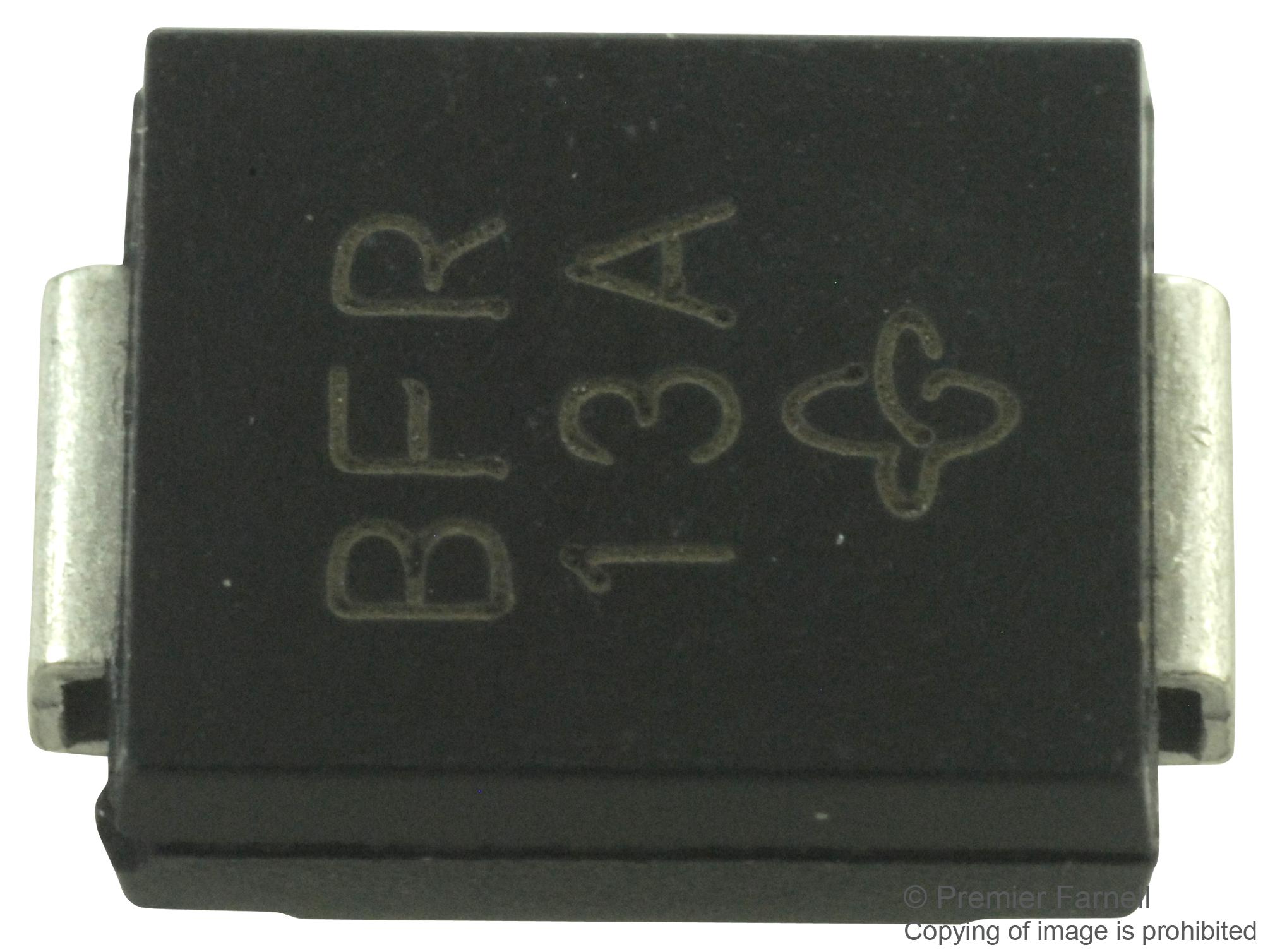

VISHAY - SMBJ5.0CA-E3/52 - TVS Diode, SMBJ, Bidirectional, 5 V, 9.2 V, DO-214AA (SMB), 2 Pins
- Product Range: SMBJ Series
- TVS Polarity: Bidirectional
- Reverse Stand-Off Voltage Vrwm: 5V
- Clamping Voltage Vc Max: 9.2V
- Diode Case Style: DO-214AA
- No. of Pins: 2Pins
- Breakdown Voltage Min: 6.4V
- Breakdown Voltage Max: 7.25V
- Peak Pulse Power Dissipation: 600W
- Automotive Qualification Standard: -
- SVHC: Lead (15-Jan-2019)
- Breakdown Voltage: 7.07V
- Breakdown Voltage Range: 6.4V to 7.25V
- Breakover Voltage Min: 6.4V
- Diode Type: Bidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Peak Pulse Current Ippm: 62.5A
- Power Dissipation Pd: 600W
- Reverse Leakage Current Max: 800µA
- Stand-off Voltage: 5V
- Termination Type: Surface Mount Device
- Test Current: 10mA
- Time Measured: 50ms
