Omschrijving

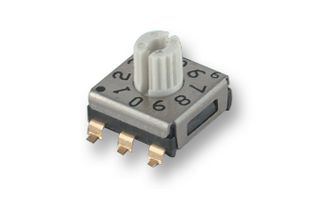

KNITTER-SWITCH - SMR 14016 - Rotary Coded Switch, SMR14016, Surface Mount, 16 Position, 50 VDC, Hexadecimal, 100 mA
- Product Range: SMR14016 Series
- Switch Mounting: SMD
- No. of Switch Positions: 16 Position
- Switching Voltage: 50VDC
- Output Code: Hexadecimal
- Switching Current: 100mA
- Switch Construction: Sealed
- Actuator Level: Raised
- SVHC: No SVHC (15-Jan-2018)
- Angle: 22.5°
- Angle of Throw: 22.5°
- Contact Current DC Max: 100mA
- Contact Current Rating: 100mA
- Contact Resistance: 200mohm
- Contact Voltage DC Max: 50V
- Contact Voltage DC Min: 5VDC
- Indexing Angle: 22.5°
- No. of Positions: 16Ways
- Operating Temperature Max: 75°C
- Operating Temperature Min: -25°C
- Proof Voltage: 250V
- Repeatability: 20000
- Shaft Diameter: 3.4mm
