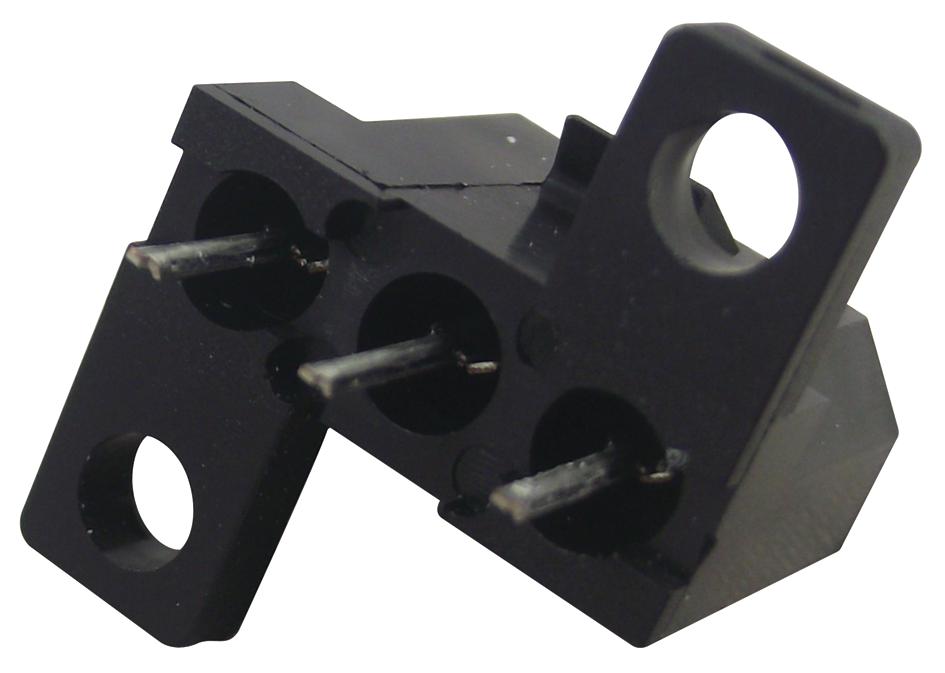

SOURIAU-SUNBANK / EATON - SMS3RE4TR29 - Pin Header, Wire-to-Board, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Straight, Souriau Qikmate SMS
- Pitch Spacing: 2.54mm
- No. of Contacts: 3Contacts
- Gender: Plug
- Product Range: Qikmate SMS Series
- Contact Termination Type: Through Hole
- No. of Rows: 1Rows
- Contact Plating: Tin Plated Contacts
- Contact Material: Copper Alloy
- SVHC: Lead (15-Jan-2019)
- Colour: Black
- Contact Resistance: 6mohm
- Current Rating: 5A
- Flammability Rating: UL94V-2
- Material: Polyamide
- Operating Temperature Max: 105°C
- Operating Temperature Min: -55°C
