Omschrijving

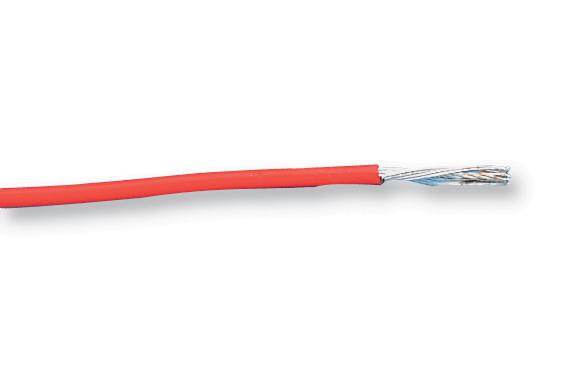

BRAND REX - SPC00447A001 100M - Wire, Stranded, Equipment, BS3G210 Type B, PTFE, Red, 24 AWG, 0.22 mm², 328 ft, 100 m
- Jacket Material: PTFE
- Jacket Colour: Red
- Wire Gauge: 24AWG
- Conductor Area CSA: 0.22mm²
- Reel Length (Imperial): 328ft
- Reel Length (Metric): 100m
- No. of Max Strands x Strand Size: 7 x 0.2mm
- Voltage Rating: 600V
- Conductor Material: Silver Plated Copper
- External Diameter: 1.2mm
- Approval Specification: BS 3G 210 Type B
- Product Range: SPC PTFE Series
- SVHC: No SVHC (07-Jul-2017)
- Conductor Make-up: 7 / 0.2mm
- Conductor Plating: Silver
- Current Rating: 6A
- Operating Temperature Max: 190°C
- Operating Temperature Min: -50°C
- Outer Diameter: 1.2mm
- Standard: BS3G210, Def std 61-12 pt 8
- Voltage Rating VAC: 600V
- Wire Size: 24AWG
