Omschrijving

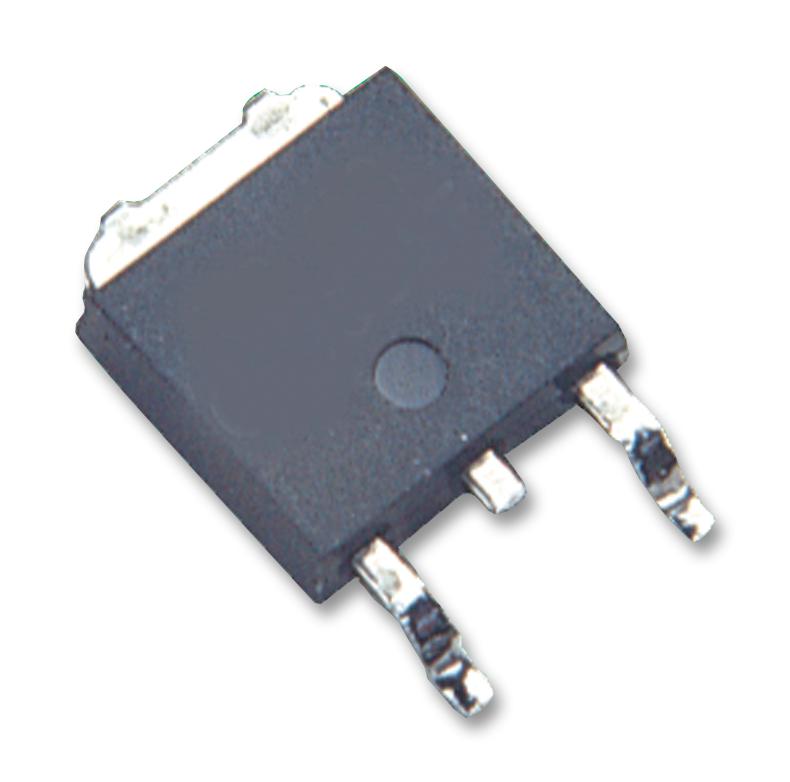

INFINEON - SPD08P06PGBTMA1 - Power MOSFET, P Channel, 60 V, 8.83 A, 0.23 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -8.83A
- Drain Source Voltage Vds: -60V
- On Resistance Rds(on): 0.23ohm
- Rds(on) Test Voltage Vgs: -6.2V
- Threshold Voltage Vgs: -3V
- Power Dissipation Pd: 42W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q101
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
