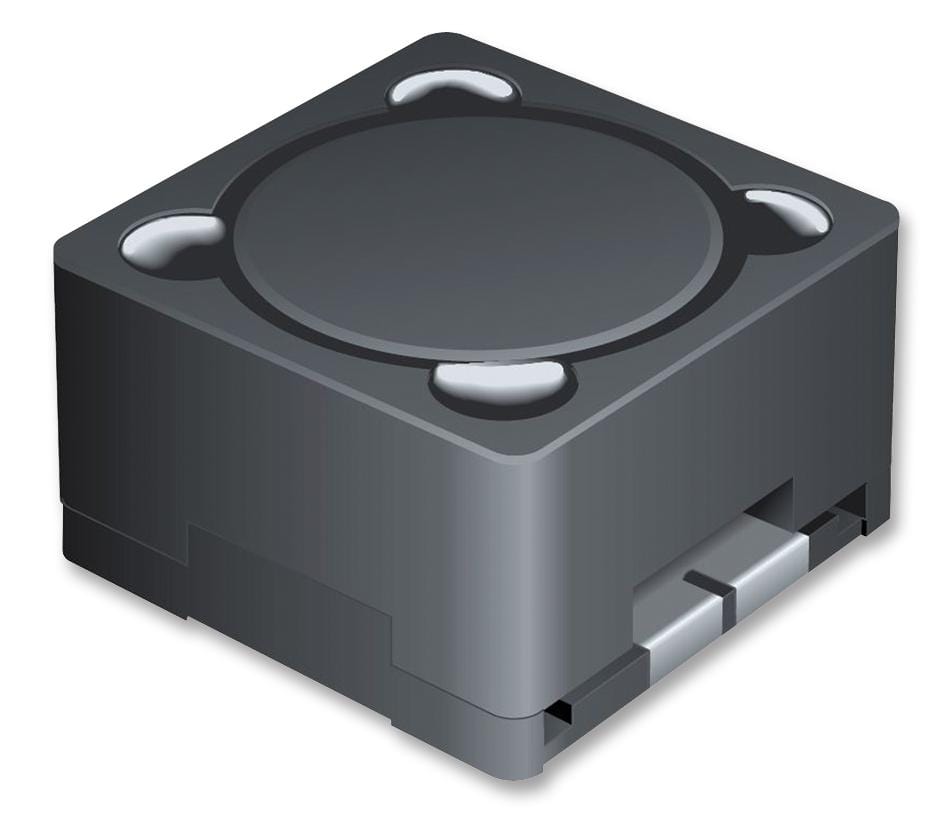

BOURNS - SRR1208-102KL - Power Inductor (SMD), 1 mH, 500 mA, Shielded, 670 mA, SRR1208, 12.7mm x 12.7mm x 8.5mm
- Inductance: 1mH
- RMS Current (Irms): 500mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 670mA
- Product Range: SRR1208 Series
- Power Inductor Case: 12.7mm x 12.7mm x 8.5mm
- DC Resistance Max: 1.65ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2018)
- No. of Pins: 2Pins
- Q Factor: 11
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 1MHz
