Omschrijving

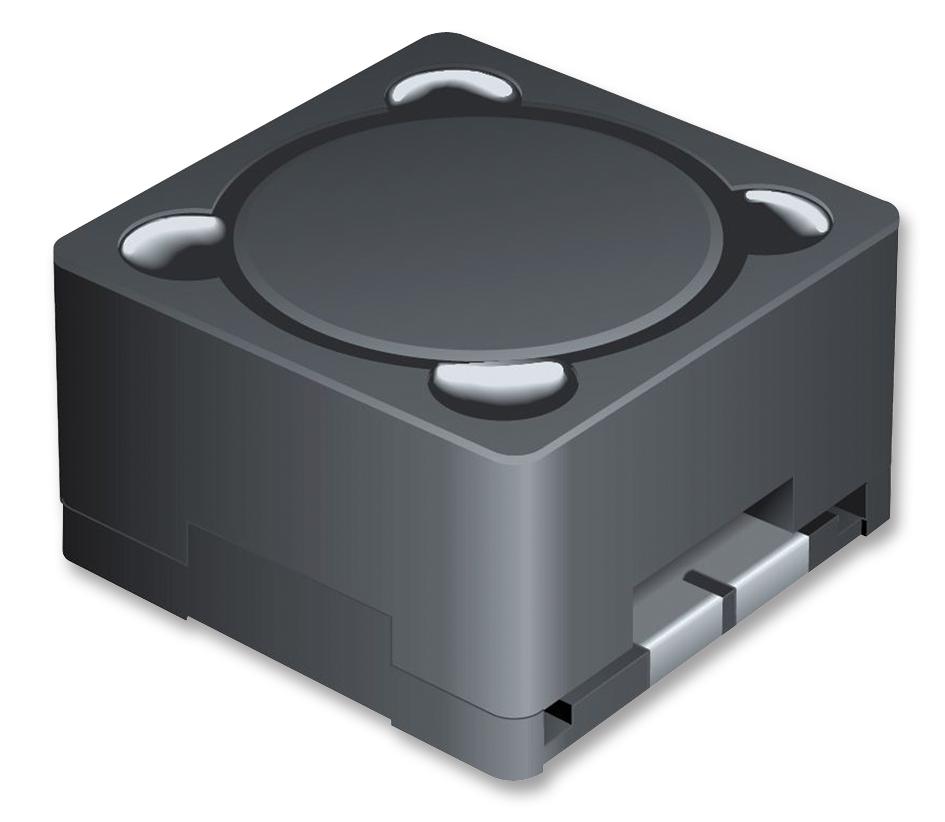

BOURNS - SRR1208-182KL - Power Inductor (SMD), 1.8 mH, 460 mA, Shielded, 480 mA
- Inductance: 1.8mH
- RMS Current (Irms): 460mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 480mA
- Product Range: -
- Power Inductor Case: 12.7mm x 12.7mm x 8.5mm
- DC Resistance Max: 3.4ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (07-Jul-2017)
- No. of Pins: 2Pins
- Q Factor: 20
- Q Test Frequency: 252kHz
- Self Resonant Frequency Min: 700kHz
