SS12SDP2 Slide Switch, SPDT, On-None-On NKK Switches

NKK SWITCHESSKU:SS12SDP2 Bestelcode:1524325

Prijs:
Actie prijs€9,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1135 units)

Documenten en downloads

Omschrijving

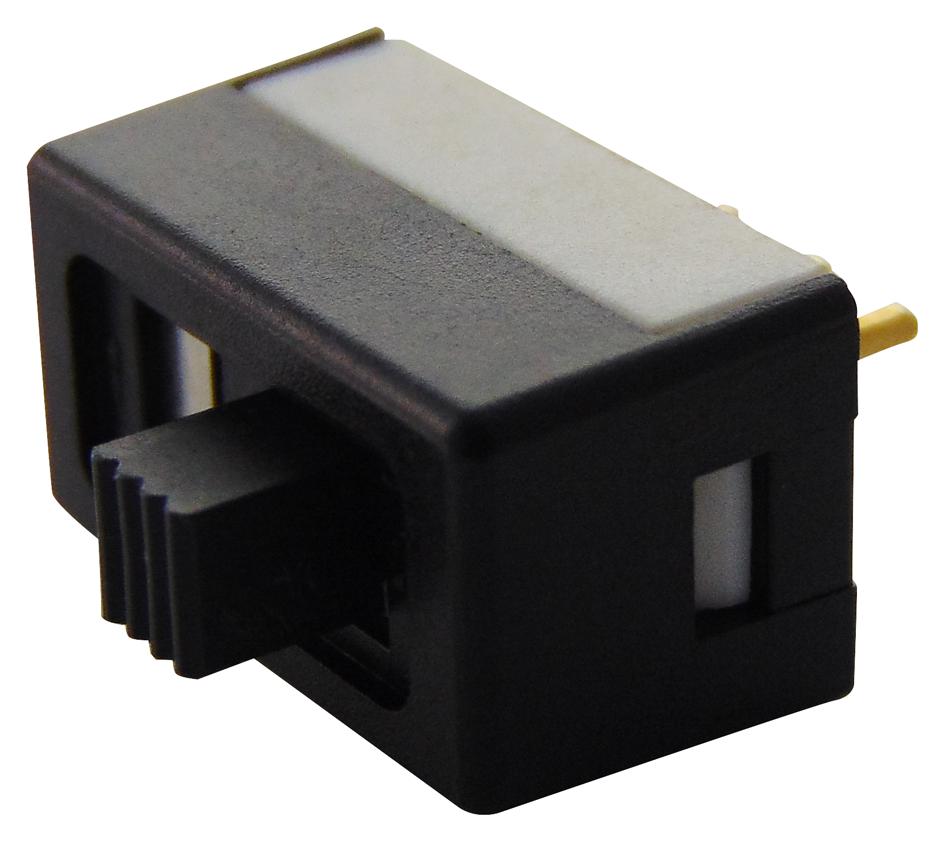

NKK SWITCHES - SS12SDP2 - Slide Switch, SPDT, On-None-On, Through Hole, SS, 100 mA

  • Contact Configuration: SPDT
  • Switch Operation: On-None-On
  • Switch Mounting: Through Hole
  • Product Range: SS Series
  • Contact Current Max: 100mA
  • Contact Voltage AC Max: -
  • Contact Voltage DC Max: 30V
  • Orientation: Vertical
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Raised
  • Actuator Type: Raised Slide
  • Contact Current DC Max: 0.1A
  • Contact Resistance: 20mohm
  • Dielectric Strength VDC: 500VAC
  • External Depth: 4mm
  • External Length / Height: 4.5mm
  • External Width: 10.2mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • Lead Spacing: 2.54mm
  • Lever Length: 2mm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 10000
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -15°C
  • Pin Length: 3mm
  • Termination Method: Top Actuated
  • Travel: 2mm

Verwachte verzendkosten

Bekijk ook eens

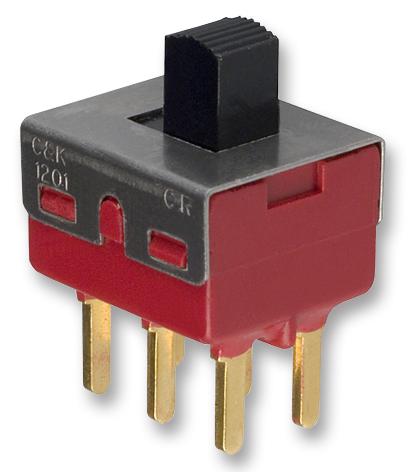

1201M2S3CQE2 SLIDE SWITCH, DPDT, ON-ON C&K COMPONENTS
C&K COMPONENTS 1201M2S3CQE2 Slide Switch, DPDT, On-On C&K Components
Actie prijs€18,33
Op voorraad, 35 producten
SK12AAW01 KEYSWITCH, 12MM, 2 POS NKK SWITCHES
NKK SWITCHES SK12AAW01 KEYSWITCH, 12MM, 2 POS NKK SWITCHES
Actie prijs€52,27
Nog maar 4 producten over
09-10290-01 SWITCH, SPDT, 12V, 0.5A, R/A EAO
EAO 09-10290-01 Switch, SPDT, 12V, 0.5A, R/A Eao
Actie prijs€6,62
Op voorraad, 2523 producten
6MS1S2M1RE SWITCH, SLIDE, SPDT, ON-ON MULTICOMP PRO
MULTICOMP PRO 6MS1S2M1RE Switch, Slide, SPDT, On-On multicomp Pro
Actie prijs€2,73
Op voorraad, 6361 producten

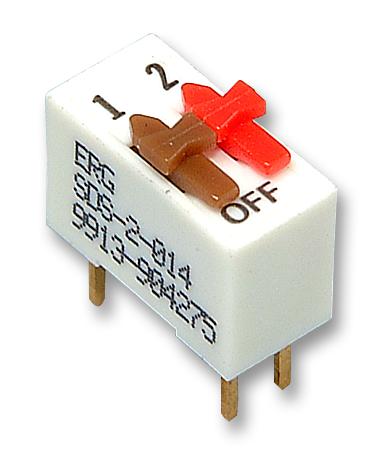

SDS-2-014 SWITCH, DIL, ST, 2WAY ERG COMPONENTS
