Omschrijving

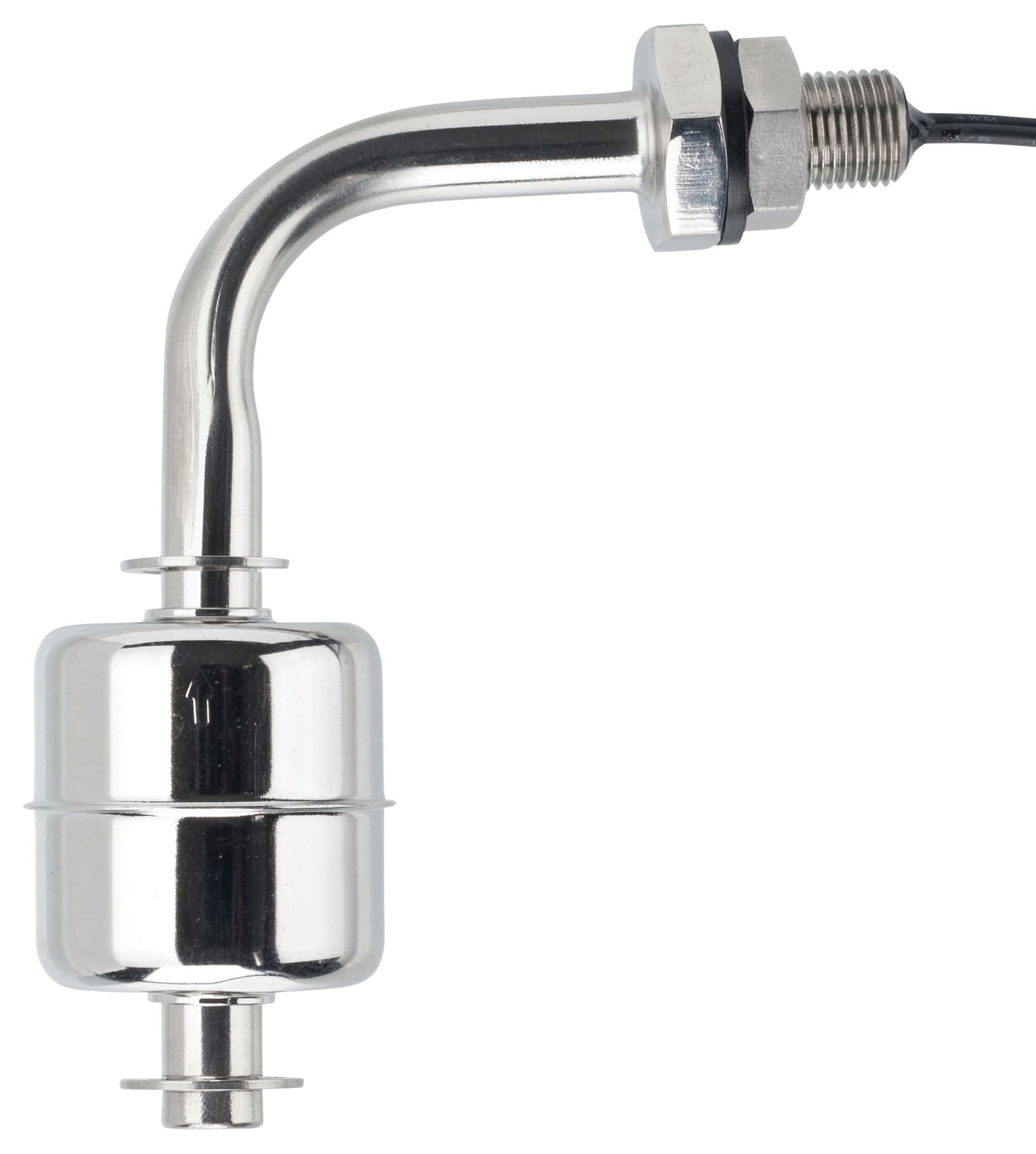

SENSATA / CYNERGY3 - SSF24X100 - Float Switch, SSF24 Series, Vertical, Side Mount, SPST, Stainless Steel, 50 VA, 1 m Cable
- Operating Pressure Max: 10bar
- Sensor Body Material: Stainless Steel
- Output Current: 500mA
- Product Range: -
- SVHC: No SVHC (17-Dec-2015)
- Body Material: Stainless Steel
- Contact Configuration: 1NO / 1NC
- Contact Current AC Max: 0.5A
- Contact Voltage AC Max: 300V
- External Length / Height: 55mm
- Float Diameter: 28mm
- Height: 75mm
- Lead Length: 350mm
- Material: 316 Grade
- Operating Pressure Range: 0bar to 10bar
- Operating Temperature Max: 120°C
- Pressure Max: 10bar
- Sensor Output: SPST-NO / SPST-NC
- Specific Gravity of Liquid Min: 0.80
- Switching Current AC Max: 0.5A
- Switching Voltage AC / DC Max: 300VAC
- Thread Size: 1/8" BSP
