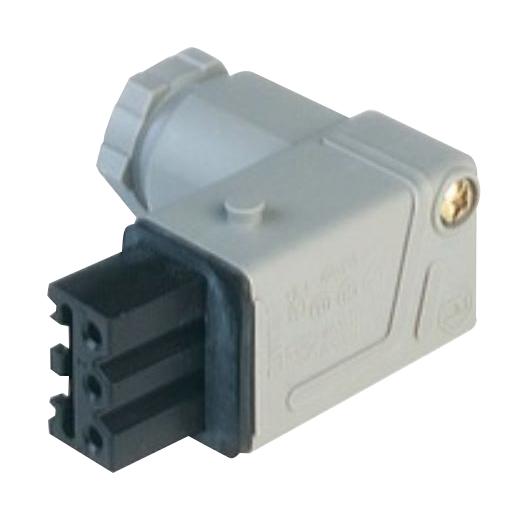

HIRSCHMANN - STAK3N - Rectangular Power Connector, 3+PE, 3 Contacts, Hirschmann - ST, Cable Mount, Screw, Receptacle
- No. of Contacts: 3Contacts
- Product Range: Hirschmann - ST Series
- Connector Mounting: Cable Mount
- Contact Termination Type: Screw
- Pitch Spacing: -
- Gender: Receptacle
- Contact Gender: Socket
- Contact Material: Brass
- Contact Plating: Tin Plated Contacts
- Connector Shell Size: -
- No. of Rows: 1Rows
- SVHC: Lead (27-Jun-2018)
- Approval Bodies: SEV, UL, VDE
- Cable Diameter Max: 10mm
- Cable Diameter Min: 6mm
- Connector Type: Rectangular
- Contact Resistance: 5mohm
- Contact Termination: Screw
- Current Rating: 16A
- IP / NEMA Rating: IP54
- Material: Polyamide
- No. of Earth Contacts: 1
- Operating Temperature Max: 90°C
- Operating Temperature Min: -30°C
- Voltage Rating V DC: 250V
- Voltage Rating VAC: 400V
