Omschrijving

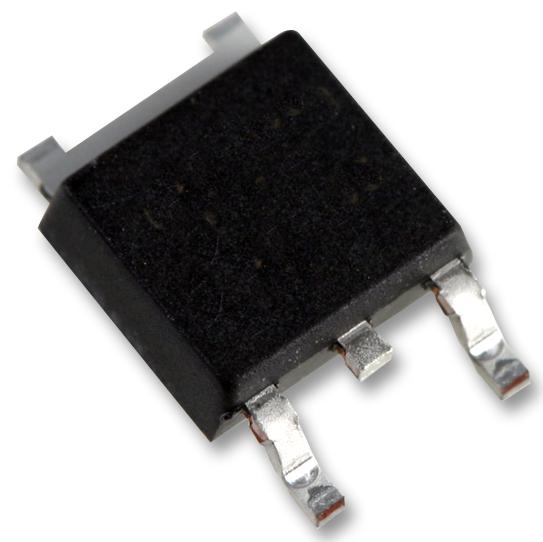

STMICROELECTRONICS - STD6NF10T4 - Power MOSFET, N Channel, 100 V, 3 A, 0.22 ohm, TO-252 (DPAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 3A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 0.22ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 30W
- Transistor Case Style: TO-252
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 6A
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +175°C
- Termination Type: Surface Mount Device
- Transistor Type: Power MOSFET
- Voltage Vds Typ: 100V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
