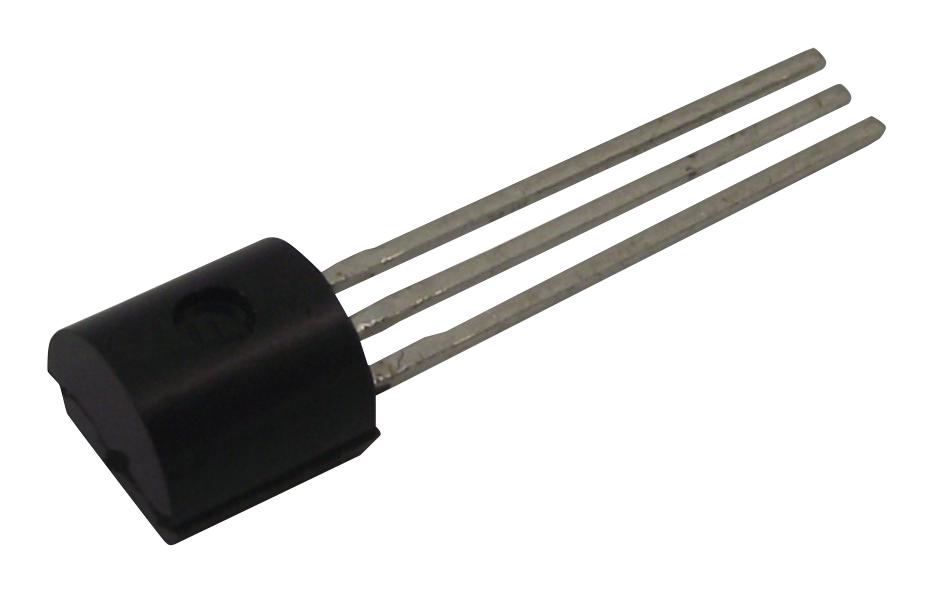

STQ1HNK60R-AP MOSFET, N Ch, 600v, 0.4A, TO92 STMICROELECTRONICS

STMICROELECTRONICSSKU:STQ1HNK60R-AP Bestelcode:1752178

Prijs:
Actie prijs€1,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (4144 units)

Documenten en downloads

Omschrijving

STMICROELECTRONICS - STQ1HNK60R-AP - Power MOSFET, N Channel, 600 V, 400 mA, 8 ohm, TO-92, Through Hole

  • Transistor Polarity: N Channel
  • Continuous Drain Current Id: 400mA
  • Drain Source Voltage Vds: 600V
  • On Resistance Rds(on): 8ohm
  • Rds(on) Test Voltage Vgs: 10V
  • Threshold Voltage Vgs: 3V
  • Power Dissipation Pd: 3W
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (17-Dec-2015)
  • Current Id Max: 400mA
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Termination Type: Through Hole
  • Transistor Type: Power MOSFET
  • Voltage Vds Typ: 600V
  • Voltage Vgs Max: 30V
  • Voltage Vgs Rds on Measurement: 10V
