Omschrijving

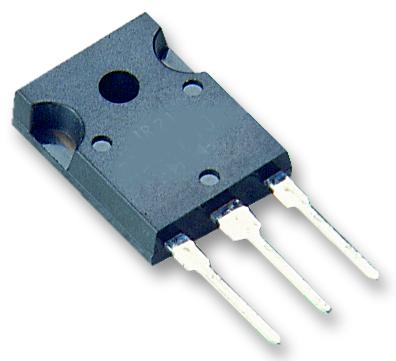

STMICROELECTRONICS - STY60NM50 - Power MOSFET, N Channel, 500 V, 60 A, 0.05 ohm, MAX-247, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 60A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 0.05ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 560W
- Transistor Case Style: MAX-247
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Current Id Max: 60A
- No. of Transistors: 1
- On State resistance @ Vgs = 10V: 50mohm
- Pulse Current Idm: 240A
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 4V
- Voltage Vgs Rds on Measurement: 10V
