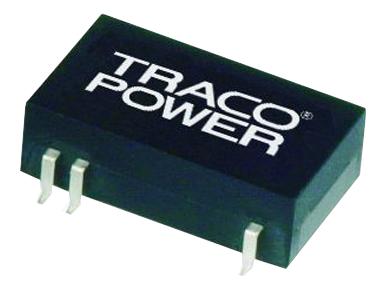

TRACO POWER - TES 2N-1223 - Isolated Surface Mount DC/DC Converter, ITE, 2:1, 2 W, 2 Output, 15 V, 65 mA
- No. of Outputs: 2 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 65mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 65mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: TES 2N Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: Surface Mount DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 13.7mm
- Height: 8mm
- Depth: 24mm
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CSA, EN, IEC, UL
- Approvals & Standards: CSA, IEC, UL
- Isolation Voltage: 1.5kV
- No. of Outputs: 2Outputs
- Operating Temperature Max: +71°C
- Output Voltage +: -15VDC
- Output Voltage -: -15V
- Power Rating: 2W
- Supply Voltage: 12V
