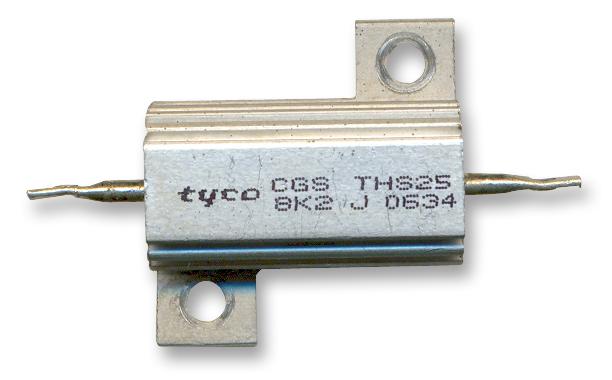

CGS - TE CONNECTIVITY - THS2510KJ - Resistor, Axial Leaded, 10 kohm, THS, 25 W, ± 5%, Solder Lug, 550 V
- Resistance: 10kohm
- Product Range: THS Series
- Power Rating: 25W
- Resistance Tolerance: ± 5%
- Resistor Terminals: Solder Lug
- Voltage Rating: 550V
- Resistor Element Material: Wirewound
- Temperature Coefficient: ± 30ppm/°C
- Body Length: 29mm
- External Length / Height: 15mm
- External Width: 28mm
- Fixing Hole Diameter: 3.3mm
- Full Power Rating Temperature: 25°C
- Insulation Resistance: 10000Mohm
- Lead Length: 10mm
- Length: 51.8mm
- No. of Pins: 2Pins
- Operating Temperature Max: 120°C
- Operating Temperature Min: -25°C
- Operating Temperature Range: -25°C to +120°C
- Resistor Case Style: Axial Leaded
- Resistor Mounting: Through Hole
- Temperature Coeff. +: 30ppm/°C
- Temperature Coeff. -: 30ppm/°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 550V
- Voltage Rating VAC: 550V
- Working Voltage: 550V
