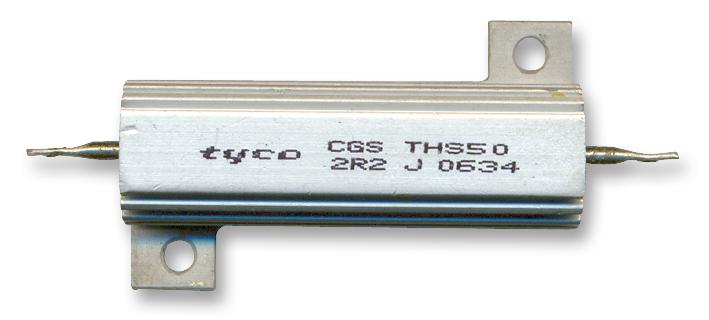

THS5010KJ Resistor, Al Clad, 50W 10K 5% CGS - Te Connectivity

CGS - TE CONNECTIVITYSKU:THS5010KJ Bestelcode:1259515

Prijs:
Actie prijs€9,47

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (109 units)

Documenten en downloads

Omschrijving

CGS - TE CONNECTIVITY - THS5010KJ - Resistor, Axial Leaded, 10 kohm, THS, 50 W, ± 5%, Solder Lug, 1.25 kV

  • Resistance: 10kohm
  • Product Range: THS Series
  • Power Rating: 50W
  • Resistance Tolerance: ± 5%
  • Resistor Terminals: Solder Lug
  • Voltage Rating: 1.25kV
  • Resistor Element Material: Wirewound
  • Temperature Coefficient: ± 30ppm/°C
  • SVHC: No SVHC (15-Jan-2019)
  • Body Length: 51mm
  • External Length / Height: 17mm
  • External Width: 30mm
  • Fixing Hole Diameter: 3.3mm
  • Full Power Rating Temperature: 25°C
  • Insulation Resistance: 10000Mohm
  • Lead Length: 10mm
  • Length: 72.5mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 250°C
  • Operating Temperature Min: -25°C
  • Operating Temperature Range: -25°C to +250°C
  • Resistor Case Style: Axial Leaded
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 30ppm/°C
  • Temperature Coeff. -: 30ppm/°C
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 1250V
  • Voltage Rating VAC: 1250V
  • Working Voltage: 1250V
