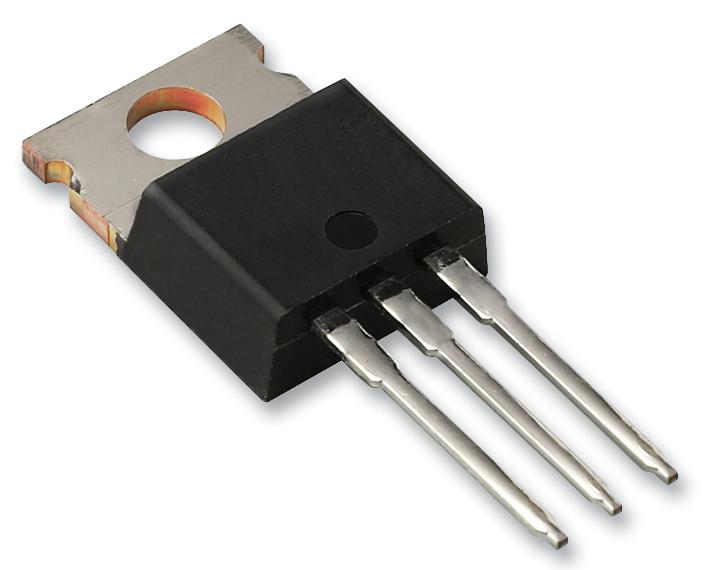

STMICROELECTRONICS - TIP105 - Bipolar (BJT) Single Transistor, Darlington, PNP, 60 V, 8 A, 2 W, TO-220, Through Hole
- Transistor Polarity: PNP
- Collector Emitter Voltage V(br)ceo: -60V
- Transition Frequency ft: -
- Power Dissipation Pd: 2W
- DC Collector Current: 8A
- DC Current Gain hFE: 20000hFE
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Av Current Ic: 8A
- Collector Emitter Saturation Voltage Vce(on): -2V
- Continuous Collector Current Ic Max: 15mA
- Current Ic Continuous a Max: 8A
- Current Ic hFE: 8A
- Full Power Rating Temperature: 25°C
- Hfe Min: 200
- No. of Transistors: 1
- Power Dissipation Ptot Max: 80W
- Termination Type: Through Hole
- Transistor Type: Darlington
