Omschrijving

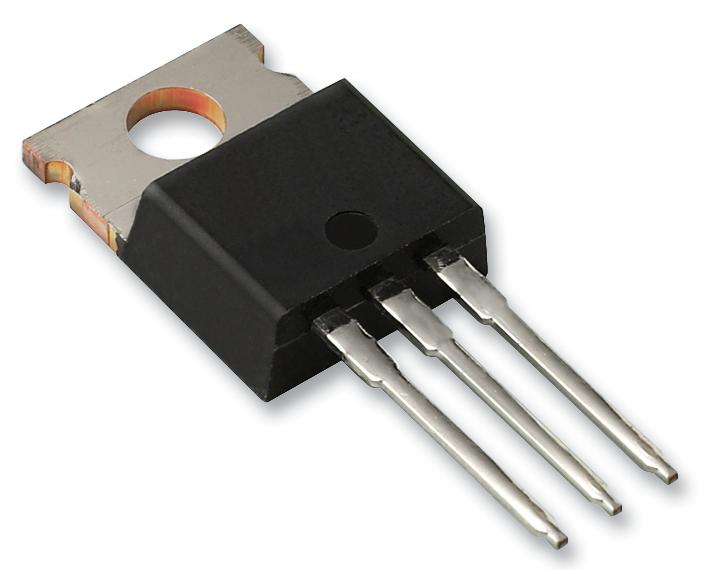

STMICROELECTRONICS - TIP50 - Bipolar (BJT) Single Transistor, NPN, 400 V, 1 A, 40 W, TO-220, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 400V
- Transition Frequency ft: 10MHz
- Power Dissipation Pd: 40W
- DC Collector Current: 1A
- DC Current Gain hFE: 150hFE
- Transistor Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (17-Dec-2015)
- Collector Emitter Saturation Voltage Vce(on): 1V
- Current Ic Continuous a Max: 1A
- Current Ic hFE: 150mA
- Gain Bandwidth ft Typ: 10MHz
- Hfe Min: 30
- Termination Type: Through Hole
