Omschrijving

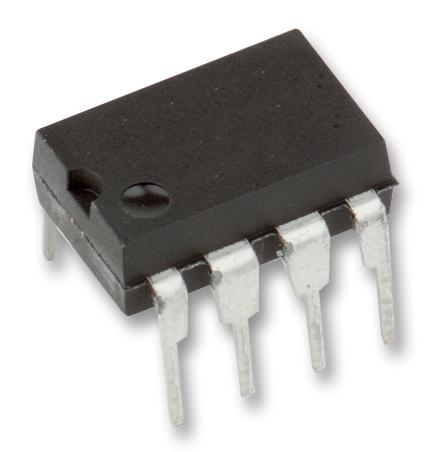

POWER INTEGRATIONS - TOP221PN - AC/DC Off-Line Switcher IC, TOPSwitch-II Family, 85VAC - 265VAC, 100 kHz, 25 mA output, 6W, DIP-8
- Input Voltage AC Min: 85V
- Input Voltage AC Max: 265V
- AC / DC Converter Case Style: DIP
- No. of Pins: 8Pins
- Power Rating: 9W
- Topology: Flyback, Forward, Boost, Buck
- Operating Temperature Min: -40°C
- Operating Temperature Max: 150°C
- Product Range: TOPSwitch-II Family
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 221
- Controller IC Case Style: DIP
- Frequency: 100kHz
- Input Voltage: 265V
- Input Voltage Max: 265VAC
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +150°C
- Output Current: 25mA
- Output Voltage: 700V
- Power Supply Type: Off-Line PWM Switch
- Supply Voltage Max: 36V
