Omschrijving

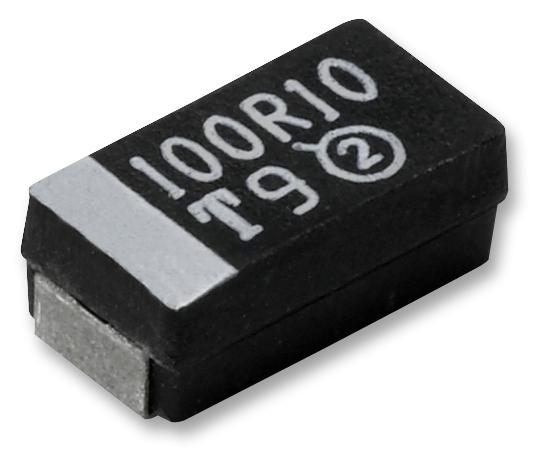

VISHAY - TR3A106M6R3C1500 - Surface Mount Tantalum Capacitor, TANTAMOUNT®, 10 µF, 6.3 V, 1206 [3216 Metric], ± 20%, 1.5 ohm, A
- Capacitance: 10µF
- Voltage Rating: 6.3V
- Tantalum Capacitor Case: 1206 [3216 Metric]
- Product Range: TR3 Series
- Capacitance Tolerance: ± 20%
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- ESR: 1.5ohm
- Manufacturer Size Code: A
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: 1206 [3216 Metric]
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- ESR Frequency: 100kHz
- ESR Temperature: 25°C
- External Depth: 1.6mm
- External Length / Height: 1.6mm
- External Width: 3.2mm
- Height: 1.6mm
- Leakage Current: 0.6µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Reel Quantity: 2000
