Omschrijving

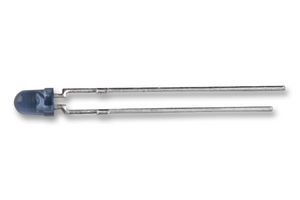

VISHAY - TSAL6200 - Infrared Emitter, High Power, 940 nm, 17 °, T-1 3/4 (5mm), 15 mW/Sr, 15 ns, 15 ns
- Peak Wavelength: 940nm
- Angle of Half Intensity: 17°
- Diode Case Style: T-1 3/4 (5mm)
- Radiant Intensity (Ie): 15mW/Sr
- Rise Time: 15ns
- Fall Time tf: 15ns
- Forward Current If(AV): 100mA
- Forward Voltage VF Max: 1.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- Product Range: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Angle of Half Sensitivity ±: 17°
- LED / Lamp Size: T-1 3/4
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Turn Off Time: 800ns
- Turn On Time: 800ns
- Viewing Angle: 17°
- Voltage Vf Typ: 1.35V
- Wavelength Typ: 940nm
