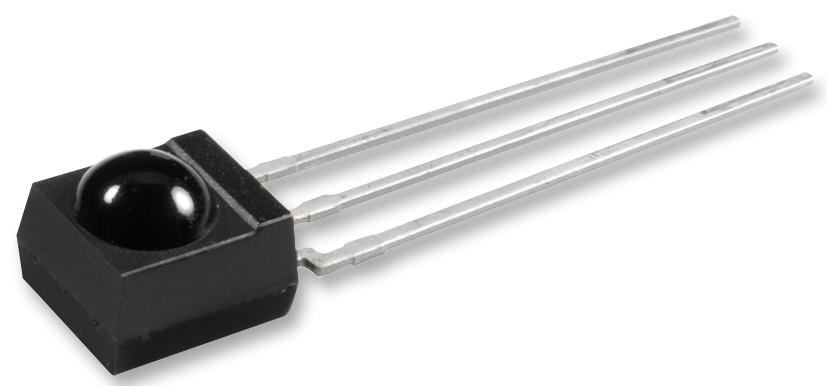

VISHAY - TSDP34138 - Infrared Receiver, 38.4 kHz, Side View Through Hole, 35m, AGC1, 0.15 mW/m²
- Carrier Frequency: 38.4kHz
- IR Receiver Mounting Style: Side View Through Hole
- Remote Control Code: -
- Transmission Range: 35m
- Automatic Gain Control (AGC) Type: AGC1
- Detection Threshold / Sensitivity: 0.15mW/m²
- Directivity: 45°
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.5V
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Supply Current: 350µA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
