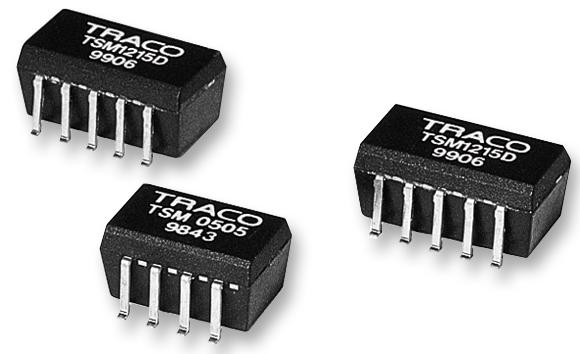

TSM 0515D Converter, DC/DC, SMT, 1W, +/-15V TRACO Power

TRACO POWERSKU:TSM 0515D Bestelcode:1205075

Prijs:
Actie prijs€15,69

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (12 units)

Documenten en downloads

Omschrijving

TRACO POWER - TSM 0515D - Isolated Surface Mount DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 15 V, 30 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 30mA
  • Output Voltage - Output 2: -15V
  • Output Current - Output 2: 30mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: TSM Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Surface Mount Device
  • Width: 8mm
  • Height: 6.8mm
  • Depth: 12.7mm
  • SVHC: No SVHC (27-Jun-2018)
  • Efficiency: 80%
  • Efficiency Max: 79%
  • External Depth: 12.7mm
  • External Length / Height: 6.95mm
  • External Width: 80mm
  • Input Voltage: 5VDC
  • Isolation Voltage: 1kV
  • Line Regulation: 10%
  • Load Regulation: 10%
  • No. of Outputs: 2Outputs
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Output Ripple Voltage pk-pk: 120mV
  • Output Voltage +: 15VDC
  • Output Voltage -: -15VDC
  • Power Rating: 1W
  • Supply Voltage: 5V
