Omschrijving

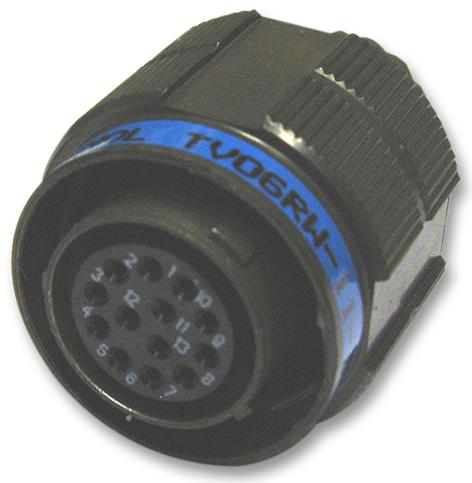

AMPHENOL LTD - TV06RW-15-35SA(W52) - Circular Connector, Tri-Start TV, Straight Plug, 37 Contacts, Crimp Socket, Threaded, 15-35
- Product Range: Tri-Start TV Series, MIL-DTL-38999 Series III Equivalent
- Circular Connector Shell Style: Straight Plug
- No. of Contacts: 37Contacts
- Circular Contact Type: Crimp Socket
- Coupling Style: Threaded
- Insert Arrangement: 15-35
- Connector Body Material: Aluminium Alloy Body
- Connector Body Plating: Olive Drab Chromate over Cadmium
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Insert Rotation: A
- Service Class: Corrosion Resistant, EMI
- Colour: Olive Drab
- Contact Resistance Max: 5mohm
- Current Rating: 5A
- Insulation Resistance: 5000Mohm
- Operating Temperature Max: 175°C
- Operating Temperature Min: -55°C
- Polarisation Type: Keyway A
- Proof Voltage: 1300V
- Range: 15-35
- Standard: MIL-C-38999 Series III
- Wire Size AWG Max: 22AWG
- Wire Size AWG Min: 28AWG
- Working Voltage: 500V
