Omschrijving

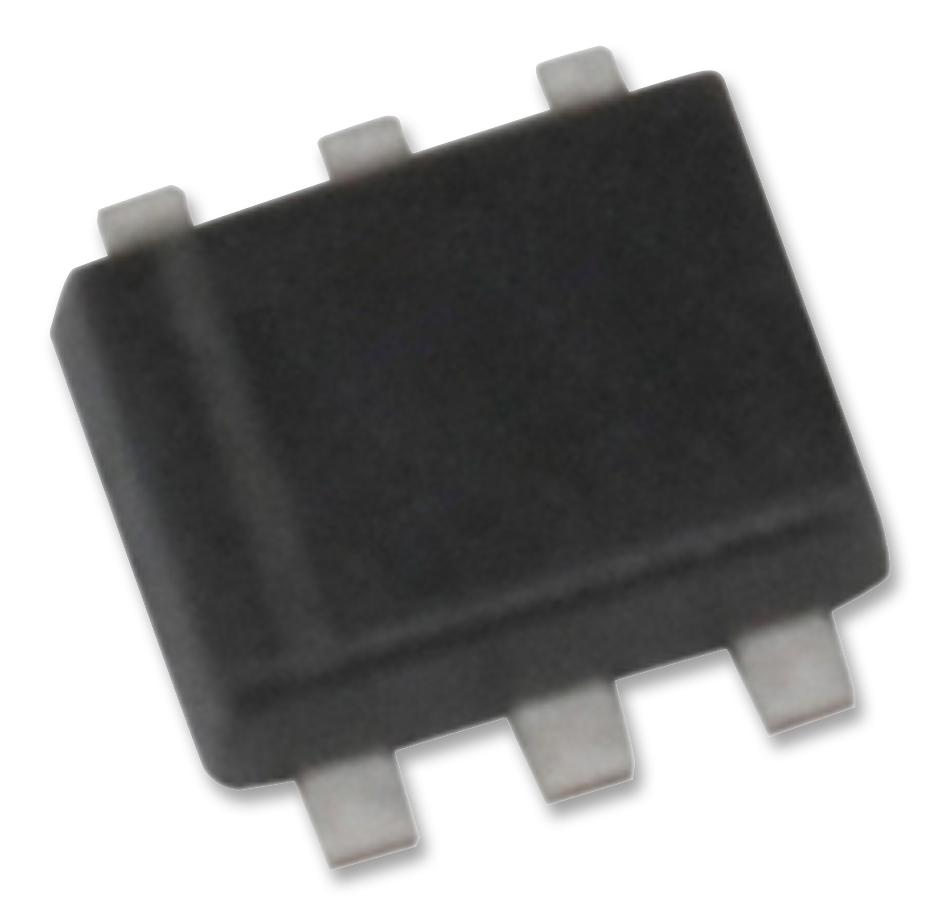

STMICROELECTRONICS - USBLC6-2P6 - ESD Protection Device, 17 V, SOT-666, 6 Pins, 1.1 V, USBLC
- Clamping Voltage Vc Max: 17V
- Diode Case Style: SOT-666
- No. of Pins: 6Pins
- Operating Voltage: 1.1V
- Power Dissipation Pd: -
- Product Range: USBLC Series
- Automotive Qualification Standard: -
- SVHC: No SVHC (17-Dec-2015)
- Breakdown Voltage: 6V
- Breakdown Voltage Max: 6V
- Breakover Voltage Min: 6V
- Capacitance Cj: 3.5pF
- Clamping Voltage @ 8/20µs Max: 17V
- Device Marking: USBLC6-2P6
- Diode Type: Unidirectional TVS
- Operating Temperature Max: 150°C
- Operating Temperature Min: -55°C
- Peak Pulse Current Ippm: 5A
- Peak Pulse Voltage: 15kV
- Reverse Leakage Current Max: 1µA
- Reverse Stand-Off Voltage Vrwm: 5V
- SMD Marking: F
- Stand-off Voltage: 5V
- TVS Polarity: Unidirectional
- Termination Type: Surface Mount Device
