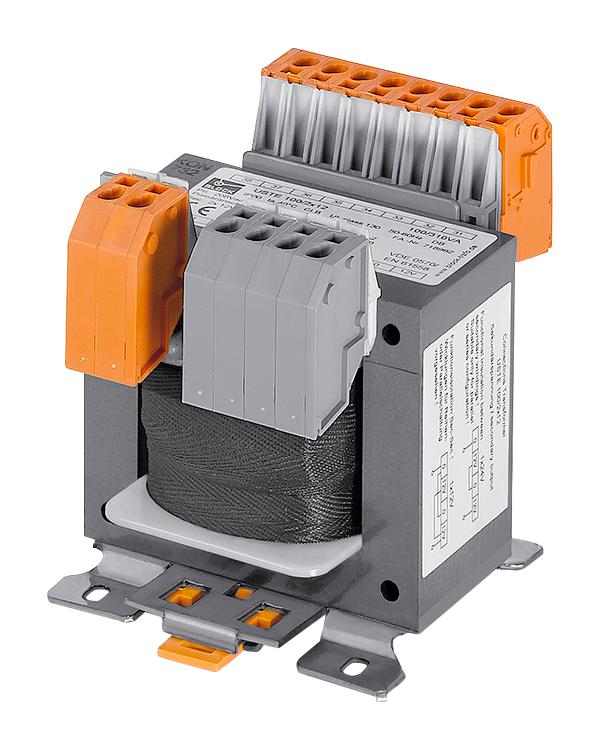

USTE100/2X12 Transformer, Isolating, 100VA Block

BLOCKSKU:USTE100/2X12 Bestelcode:1177116

Prijs:
Actie prijs€136,55

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (150 units)

Documenten en downloads

Omschrijving

BLOCK - USTE100/2X12 - Chassis Mount Transformer, Control, Open Style Control and Safety Isolating

  • Power Rating: 100VA
  • Secondary Voltages: 2 x 12V
  • Current Rating: 196mA
  • Isolation Transformer Primary Voltages: 208V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 500V, 525V, 550V, 575V, 600V
  • Plug Type: -
  • Product Range: -
  • SVHC: No SVHC (12-Jan-2017)
  • AC Power: 100VA
  • Approval Bodies: EN, IEC, UL, VDE
  • External Depth: 85mm
  • External Length / Height: 86mm
  • External Width: 84mm
  • Fixing Centres LxW: 64 x 64
  • Input Voltage: 600V
  • Insulation Class: VDE - B, UL - 130
  • Multiple Output Voltages: 2 X 12V
  • Operating Temperature Max: 40°C
  • Output 2 Voltage Max: 12V
  • Output Voltage: 12V
  • Primary Voltages: 208V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 500V, 525V, 550V, 575V, 600V
  • Protection Type: IP00
  • Secondary No Load Voltage: 1.07V
  • Secondary Power: 100VA
  • Supply Frequency Max: 60Hz
  • Supply Frequency Min: 50Hz
  • Test Voltage: 5000VAC
  • Transformer Type: Isolation
  • Type: Open
  • Weight: 2.1kg
