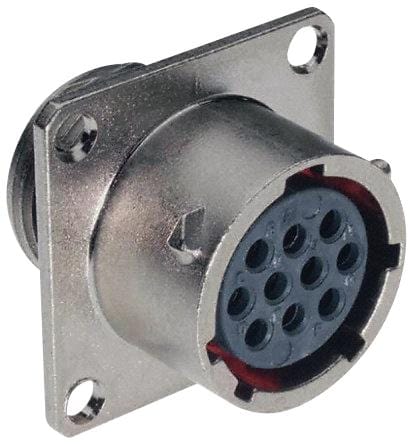

SOURIAU-SUNBANK / EATON - UT002028SH6 - Circular Connector, Souriau Trim Trio UT0 Series, Wall Mount Receptacle, 28 Contacts
- Product Range: Trim Trio UT0 Series
- Circular Connector Shell Style: Wall Mount Receptacle
- No. of Contacts: 28Contacts
- Circular Contact Type: Crimp Socket - Contacts Not Supplied
- Coupling Style: Bayonet
- Connector Body Material: Zinc Alloy Body
- Connector Body Plating: Nickel
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting: Panel Mount
- Connector Shell Size: 20
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67, IP68, IP69K
- Insert Arrangement: 20-28
- Insulation Resistance: 5000Mohm
- No. of Mating Cycles: 500
- No. of Positions: 28Ways
- Operating Temperature Max: +105°C
- Operating Temperature Min: -40°C
- Test Voltage: 2000V
- Voltage Rating VAC: 750V
