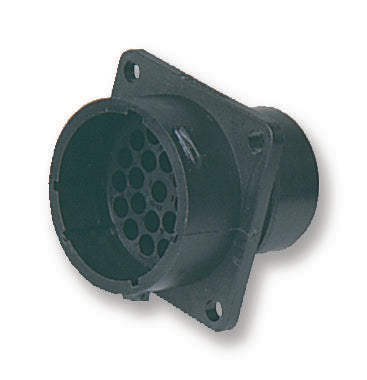

SOURIAU-SUNBANK / EATON - UTP01412P - Circular Connector, Souriau Trim Trio UTP Series, Wall Mount Receptacle, 12 Contacts
- Product Range: Trim Trio UTP Series
- Circular Connector Shell Style: Wall Mount Receptacle
- No. of Contacts: 12Contacts
- Circular Contact Type: Crimp Pin - Contacts Not Supplied
- Coupling Style: Bayonet
- Connector Body Material: Thermoplastic, Glass Filled Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: -
- SVHC: No SVHC (15-Jan-2019)
- Colour: Black
- Connector Mounting: Flange Mount
- Connector Shell Size: 14
- Connector Type: Circular Industrial
- Contact Gender: Pin
- Flammability Rating: UL94V-0
- Gender: Receptacle
- Insert Arrangement: 14-12
- Insulation Resistance: 5000Mohm
- No. of Positions: 12Ways
- Operating Temperature Max: 125°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 25mm
- Voltage Rating VAC: 750V
- Working Voltage: 750V
