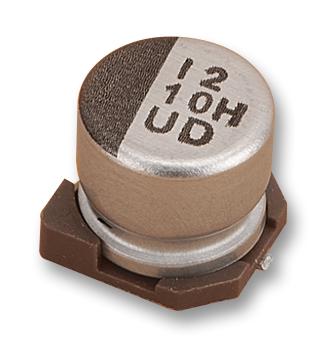

UUD1C101MCL1GS Cap, 100µF, 16V, Radial, SMD NICHICON

NICHICONSKU:UUD1C101MCL1GS Bestelcode:8823308

Prijs:
Actie prijs€0,32

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (23375 units)

Documenten en downloads

Omschrijving

NICHICON - UUD1C101MCL1GS - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 100 µF, 16 V, 2000 hours @ 105°C, Polar

  • AE Capacitor Case: Radial Can - SMD
  • Capacitance: 100µF
  • Voltage Rating: 16V
  • ESR: -
  • Product Range: UD Series
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 105°C
  • Ripple Current AC: 230mA
  • Diameter: 6.3mm
  • Height: 5.8mm
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2018)
  • Capacitance Tolerance: ± 20%
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Case Style: Radial Can - SMD
  • External Length / Height: 5.8mm
  • Impedance: 0.44ohm
  • Leakage Current: 3µA
  • Operating Temperature Range: -55°C to +105°C
  • Operating life Time: 2000h
  • Reel Quantity: 1000
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 105°C
  • Tape Width: 16mm
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 16V
