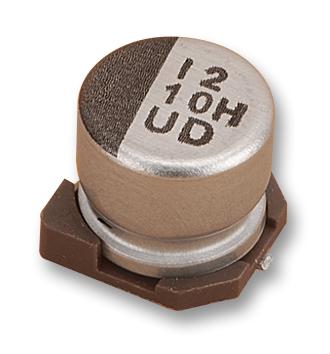

NICHICON - UUD1H100MCL1GS - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 10 µF, 50 V, 2000 hours @ 105°C, Polar
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 10µF
- Voltage Rating: 50V
- ESR: -
- Product Range: UD Series
- Lifetime @ Temperature: 2000 hours @ 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 165mA
- Diameter: 6.3mm
- Height: 5.8mm
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2018)
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- External Length / Height: 5.8mm
- Impedance: 0.88ohm
- Leakage Current: 3µA
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 2000h
- Reel Quantity: 1000
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 105°C
- Tape Width: 16mm
- Tolerance +: 20%
- Tolerance -: 20%
- Voltage Rating V DC: 50V
