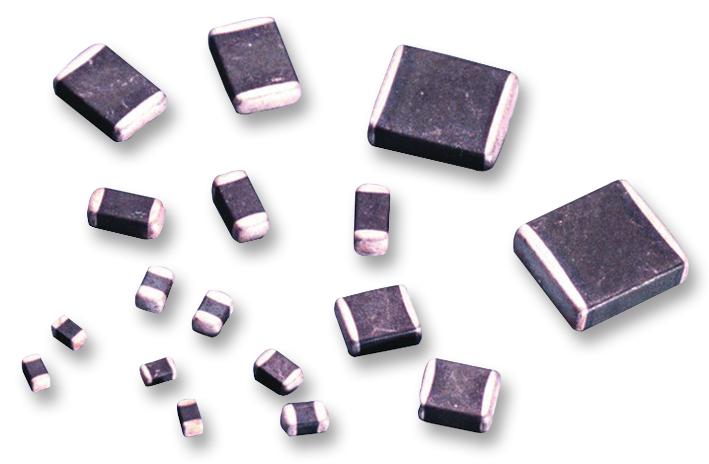

V30MLA0805LNH Varistor, 0805, 30V LITTELFUSE

LITTELFUSESKU:V30MLA0805LNH Bestelcode:1816938

Prijs:
Actie prijs€0,62

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (7315 units)

Documenten en downloads

Omschrijving

LITTELFUSE - V30MLA0805LNH - TVS Varistor, 25 V, 30 V, MLA, 72 V, 0805 [2012 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 25V
  • Voltage Rating V DC: 30V
  • Product Range: MLA Series
  • Clamping Voltage Vc Max: 72V
  • Varistor Case Style: 0805 [2012 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 30A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 100mJ
  • Automotive Qualification Standard: -
  • Capacitance: 90pF
  • Clamping Voltage: 72V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 30A
  • Suppressor Type: Varistor
  • Surge Current: 30A
  • Varistor Voltage @ 1mA: 37V
  • Varistor Voltage @ 1mA Max: 46V
