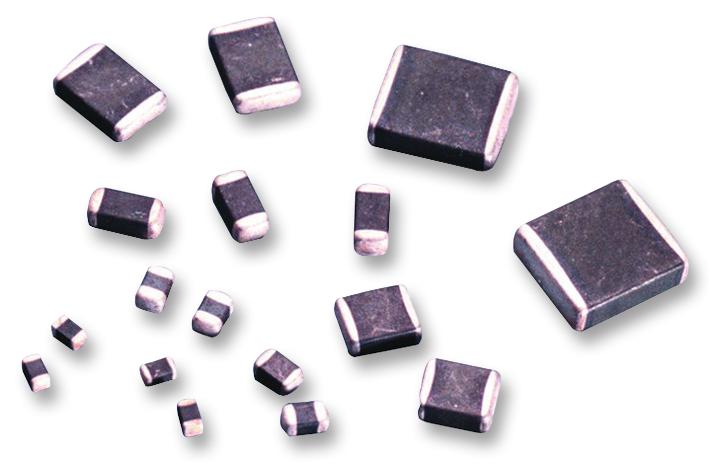

LITTELFUSE - V3.5MLA0603NH - TVS Varistor, MOV, 2.5 V, 3.5 V, MLA, 13 V, 0603 [1608 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 2.5V
- Voltage Rating V DC: 3.5V
- Product Range: MLA Series
- Clamping Voltage Vc Max: 13V
- Varistor Case Style: 0603 [1608 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 30A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 100mJ
- Automotive Qualification Standard: -
- Capacitance: 1270pF
- Clamping Voltage: 13V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 30A
- Suppressor Type: Varistor
- Surge Current: 30A
- Varistor Voltage @ 1mA: 3.7V
- Varistor Voltage @ 1mA Max: 7V
