Omschrijving

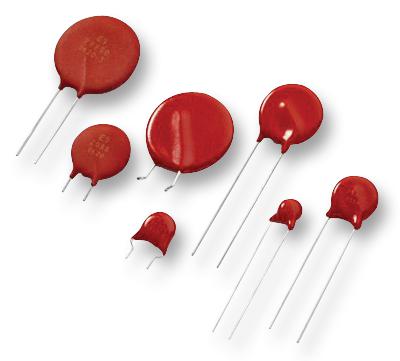

LITTELFUSE - V47ZA05P - TVS Varistor, MOV, 30 V, 38 V, ZA, 93 V, Disc 5mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 30V
- Voltage Rating V DC: 38V
- Product Range: ZA Series
- Clamping Voltage Vc Max: 93V
- Varistor Case Style: Disc 5mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 100A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 400mJ
- Automotive Qualification Standard: -
- Body Diameter: 5mm
- Clamping Voltage: 93V
- Device Marking: PZ47
- Operating Temperature Range: -55°C to +85°C
- Suppressor Type: Transient Voltage
- Surge Current: 100A
- Varistor Voltage @ 1mA: 47V
- Varistor Voltage @ 1mA Max: 52V
- Varistor Voltage Tolerance +: 10%
- Varistor Voltage Tolerance -: 10%
