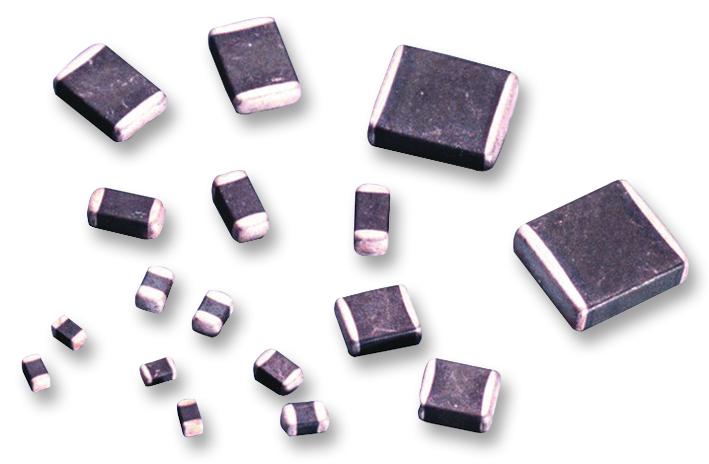

V48MLA1210NH Varistor, 1210, 48V LITTELFUSE

LITTELFUSESKU:V48MLA1210NH Bestelcode:1816945

Prijs:
Actie prijs€1,68

Incl. BTW Verzendkosten berekening in de checkout

Voorraad:
Op voorraad (1500 units)

Documenten en downloads

Omschrijving

LITTELFUSE - V48MLA1210NH - TVS Varistor, 40 V, 48 V, MLA, 105 V, 1210 [3225 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 40V
  • Voltage Rating V DC: 48V
  • Product Range: MLA Series
  • Clamping Voltage Vc Max: 105V
  • Varistor Case Style: 1210 [3225 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 250A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 1.2J
  • Automotive Qualification Standard: -
  • Capacitance: 520pF
  • Clamping Voltage: 105V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 250A
  • Suppressor Type: Varistor
  • Surge Current: 250A
  • Varistor Voltage @ 1mA: 54.5V
  • Varistor Voltage @ 1mA Max: 66.5V
