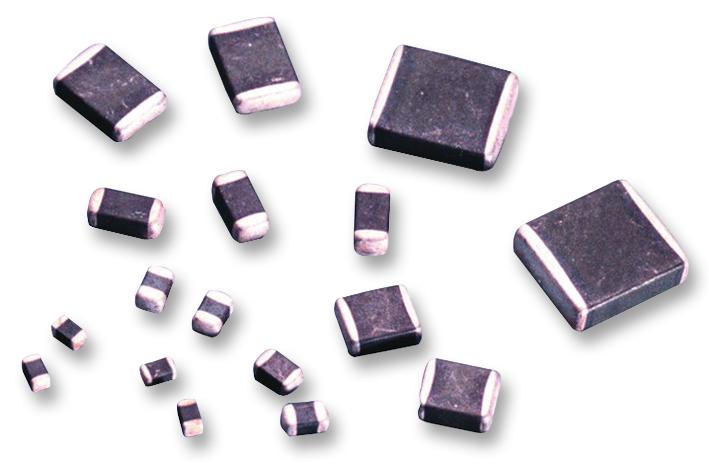

LITTELFUSE - V5.5MLA0805NH - TVS Varistor, 4 V, 5.5 V, MLA, 17.5 V, 0805 [2012 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 4V
- Voltage Rating V DC: 5.5V
- Product Range: MLA Series
- Clamping Voltage Vc Max: 17.5V
- Varistor Case Style: 0805 [2012 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 120A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 300mJ
- Automotive Qualification Standard: -
- Capacitance: 1840pF
- Clamping Voltage: 17.5V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 120A
- Suppressor Type: Varistor
- Surge Current: 120A
- Varistor Voltage @ 1mA: 7.1V
- Varistor Voltage @ 1mA Max: 9.3V
