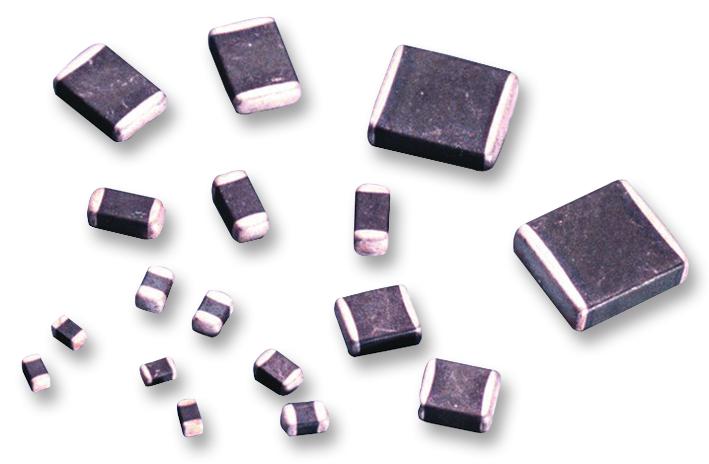

LITTELFUSE - V85MLA1210NH - TVS Varistor, 67 V, 85 V, MLA Series, 180 V, 1210 [3225 Metric], Multilayer Varistor (MLV)
- Voltage Rating VAC: 67V
- Voltage Rating V DC: 85V
- Product Range: MLA Series
- Clamping Voltage Vc Max: 180V
- Varistor Case Style: 1210 [3225 Metric]
- Varistor Type: Multilayer Varistor (MLV)
- Peak Surge Current @ 8/20µs: 250A
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Peak Energy (10/1000uS): 2.5J
- Automotive Qualification Standard: -
- Capacitance: 260pF
- Clamping Voltage: 180V
- Operating Temperature Range: -55°C to +125°C
- Peak Pulse Current IPP @ 8/20µs: 250A
- Suppressor Type: Varistor
- Surge Current: 250A
- Varistor Voltage @ 1mA: 95V
- Varistor Voltage @ 1mA Max: 115V
