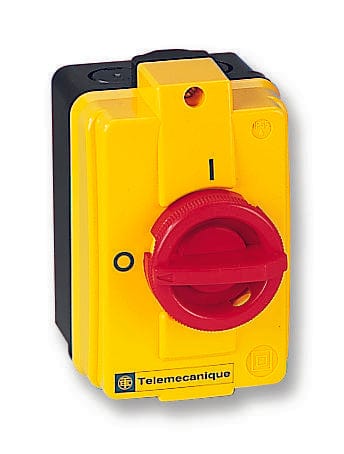

SCHNEIDER ELECTRIC - VCFN12GE - Switch Disconnector, 3 Pole, 690 V, 10 A, IP55, Screw Clamp
- Contact Current AC Max: 10A
- Contact Voltage AC Max: 690V
- No. of Poles: 3 Pole
- Product Range: Preventa Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, GL, UL
- Current Rating: 10A
- External Depth: 106mm
- External Length / Height: 131mm
- External Width: 83mm
- IP / NEMA Rating: IP55
- Main Contact Current AC3 Max: 8.1A
- Operating Temperature Max: 50°C
- Operating Temperature Min: -20°C
- Switching AC3 Power Max: 4kW
- Voltage Rating: 690V
- Voltage Rating AC Max: 690V
