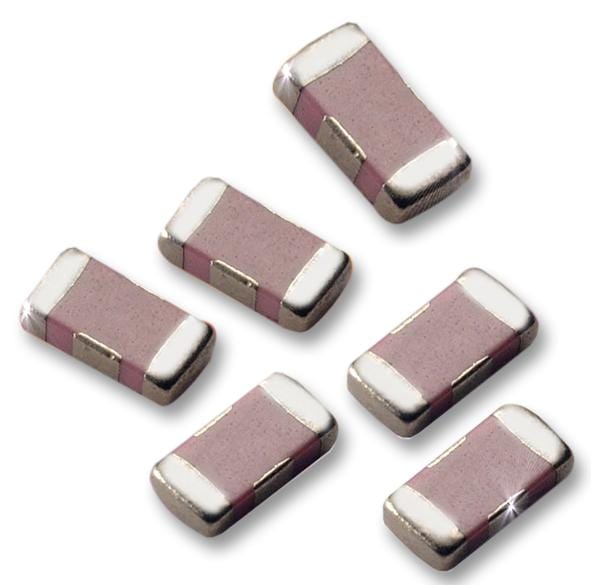

KYOCERA AVX - W2H11A2208AT1A - Feedthrough Capacitor, 22 pF, 100 V, 2 A, 0805 [2012 Metric], Surface Mount, -20%, +50%
- Capacitance: 22pF
- Voltage Rating: 100V
- Ceramic Capacitor Case: 0805 [2012 Metric]
- Capacitance Tolerance: +50%, -20%
- Dielectric Characteristic: C0G / NP0
- Product Range: W2H Series
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Capacitance Tolerance ±: +50%, -20%
- Capacitor Terminals: SMD
- Insulation Resistance: 1000mohm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Output Current: 500mA
- Resistance: 150mohm
- Tolerance +: 50%
- Tolerance -: 20%
- Voltage Rating V DC: 100V
