Omschrijving

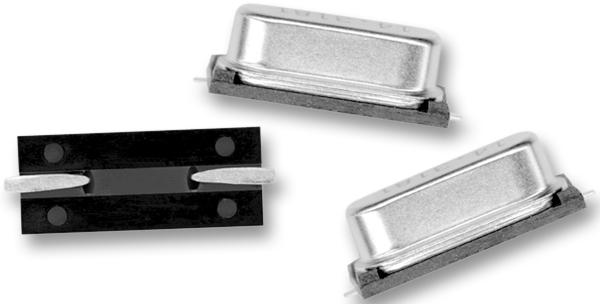

VISHAY - XT49S-208M - Crystal, 8 MHz, Through Hole, 11mm x 4.65mm, 50 ppm, 20 pF, 30 ppm, XT49S
- Frequency Nom: 8MHz
- Crystal Case: Through Hole, 11mm x 4.65mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 20pF
- Frequency Tolerance + / -: 30ppm
- Product Range: XT49S Series
- Operating Temperature Min: -10°C
- Operating Temperature Max: 70°C
- SVHC: No SVHC (15-Jun-2015)
- Accuracy: ± 30ppm
- Crystal Mounting Type: Through Hole
- Frequency: 8MHz
- No. of Pins: 2Pins
- Operating Temperature Range: -10°C to +70°C
- Output Frequency: 8MHz
- Temperature Stabilty: ± 30ppm
