Omschrijving

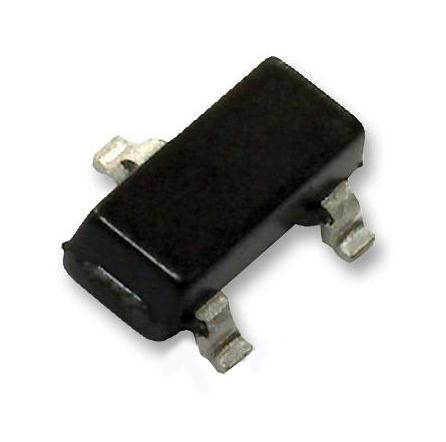

DIODES INC. - ZVN3306F - Power MOSFET, N Channel, 60 V, 150 mA, 5 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 150mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 2.4V
- Power Dissipation Pd: 330mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Current Id Max: 150mA
- Current Temperature: 25°C
- Device Marking: ZVN3306F
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Full Power Rating Temperature: 25°C
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Power Dissipation Ptot Max: 330mW
- Pulse Current Idm: 3A
- SMD Marking: MC
- Tape Width: 8mm
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 2.4V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 2.4V
